Understanding MPR and MERV

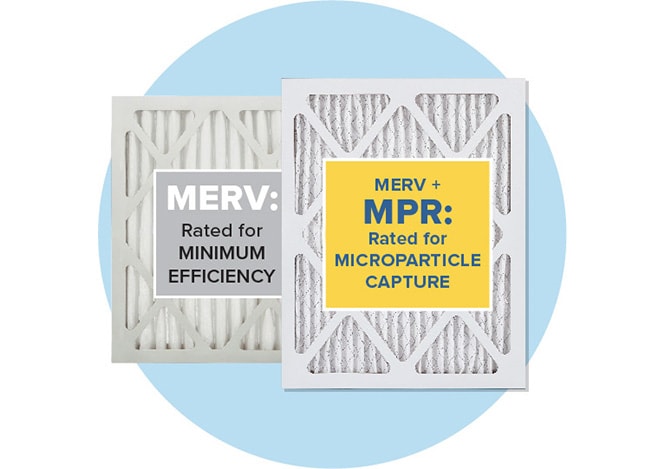

MPR (Microparticle Performance Rating) and MERV (Minimum Efficiency Reporting Value) both measure how well a filter works, but they do things differently. 3M created the MPR rating to include microscopic particles not visible to the naked eye, something the MERV scale doesn’t measure.

  • MPR (Microparticle Performance Rating)

    Scientists at 3M believe that MERV only tells part of the story. It’s why we created a different measurement — Microparticle Performance Rating (MPR). This rating includes microscopic particles not visible to the naked eye. Microparticles (Size E1 and E2) are not even measured on the MERV scale until it reaches MERV 11.

    Filtrete™ Brand technology makes it possible to capture the tiniest particles – between 0.3 and 1 micron in size — including bacteria and viruses through select high-performing filters within the portfolio.

  • MERV (Minimum Efficiency Reporting Value)

    Minimum Efficiency Reporting Value (MERV) is the industry standard for measuring how well a heating and cooling system’s filter captures particles. MERV air filter ratings range from 1 (least efficient captureability) to 16 (very efficient).

    Many homes use filters with a MERV rating of 1-4 which mostly filter out dust, lint and pollen among other larger, common particles — they do very little to trap small microparticles.


Understanding Particle Sizes

There are 3 particle-size groupings for MERV and MPR – E1, E2, and E3. Smaller particles, E1 being the smallest, can be captured in the lungs.

  • E1, E2, and E3 particles are much smaller than the diameter of a human hair.
  •





    E1 = 0.3 – 1 µm
    Includes bacteria, virus, candle soot, PM 2.5, and exhaust particles.


    E2 = 1 – 3 µm
    Includes smoke, smog, cough and sneeze particles, and pet dander.


    E3 = 3 – 10 µm
    Includes lint, dust, mold spores, pollen and pet dander.

    E1 = 0.3 – 1 µm
    Includes bacteria, virus, candle soot, PM 2.5, and exhaust particles.


    E2 = 1 – 3 µm
    Includes smoke, smog, cough and sneeze particles, and pet dander.


    E3 = 3 – 10 µm
    Includes lint, dust, mold spores, pollen and pet dander.

Filtrete™ Filters capture more E1, E2, and E3 particles than standard MERV rated filters

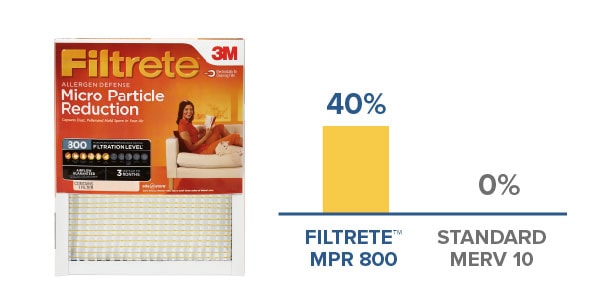

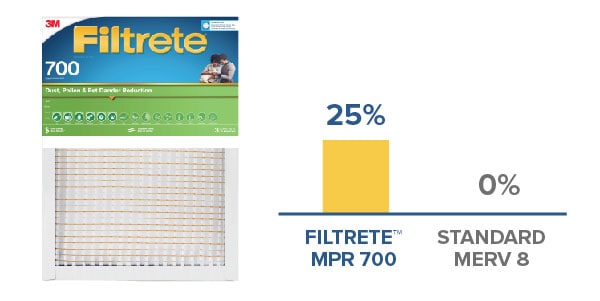

Use the charts below to see how standard MERV rated filters compare. For more detail, view the product comparison guide (PDF, 5.35 MB).

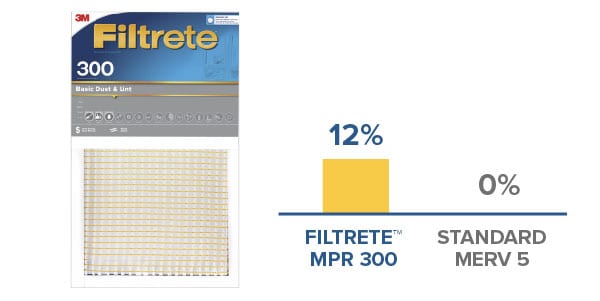

  • Graph showing a Filtrete™ MPR 300 filter captures more particles than a standard MERV 5 filter.
  • Graph showing a Filtrete™ MPR 600 filter captures more particles than a standard MERV 7 filter

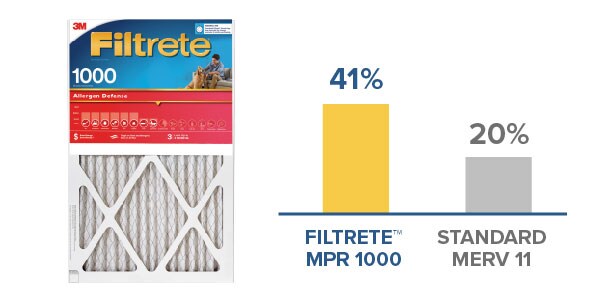

  • Graph showing a Filtrete™ MPR 1000 filter captures more particles than a standard MERV 11 filter

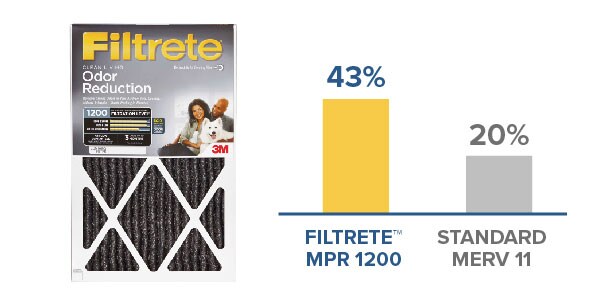

  • Graph showing a Filtrete™ MPR 1200 filter with Odor Reduction captures more particles than a standard MERV 11 filter

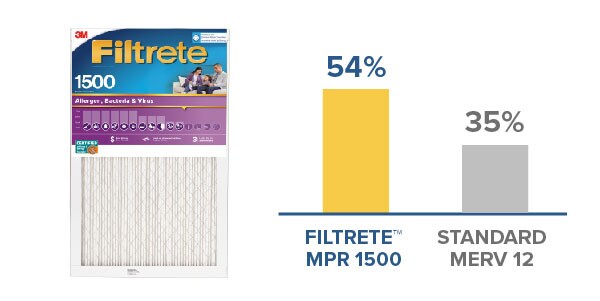

  • Graph showing a Filtrete™ MPR 1500 filter captures more particles than a standard MERV 12 filter

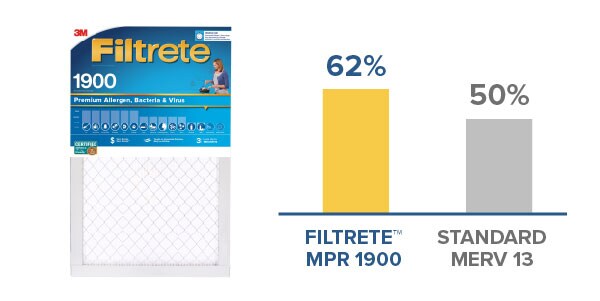

  • Graph showing a Filtrete™ MPR 1900 filter captures more particles than a standard MERV 13 filter

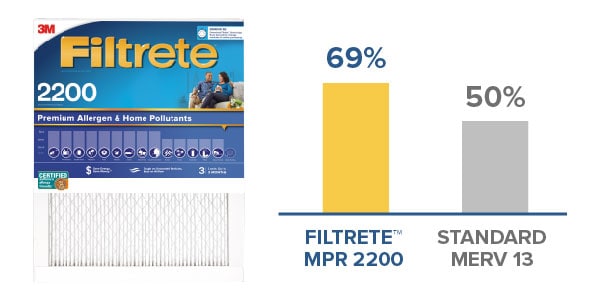

  • Graph showing a Filtrete™ MPR 2200 filter captures more particles than a standard MERV 13 filter
  • Graph showing a Filtrete™ MPR 2500 filter captures more particles than a standard MERV 14 filter

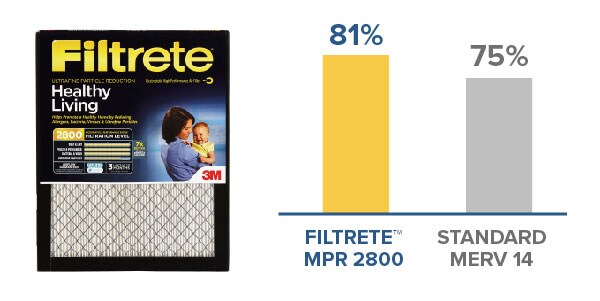

  • Graph showing a Filtrete™ MPR 2800 filter captures more particles than a standard MERV 14 filter
